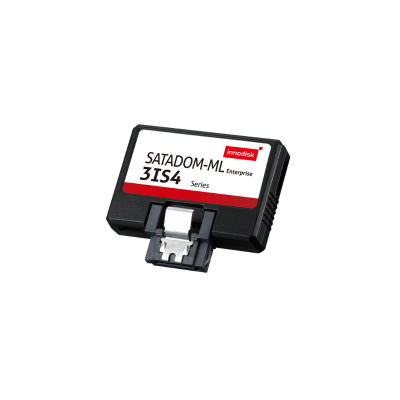

innoDisk/宜鼎SATADOM-ML 3IS4

SATADOM-ML 3IS4采用 L3 架構及 SATA III (6.0GHz) Marvell NAND 控制器。宜鼎獨家的L3 架構是以 L2 架構搭配LDPC所設計。L3 架構藉由4K比對算法，能夠減少WAF，并有實時的耗損平均算法功能，不僅展現高性能、高可靠度，更能延長使用壽命。宜鼎國際的SATADOM-ML 3IS4專為服務器領域所設計，尤其SATADOM的高度符合1U(44.5mm)高的服務器，使其可以輕松的整合各式服務器系統。

在線咨詢資料下載

全國熱線

400-888-2720

產品特色

SATA III solution for Server Boot-Up Drive
Exclusive L3 architecture
DRAM-less, 100% data integrity
Excellent random performance
Designed with hardware LDPC ECC engine
Cost-effective Flash with iSLC
Cable-less through Pin 7/Pin 8 connectors
Hardware write protection supported
High less than 1U

規格：

Module Name	SATADOM-ML 3IS4
Interface	SATA III 6.0 Gb/s
Flash Type	iSLC
Type	Vertical
Capacity	16GB~128GB
Sequential R/W (MB/sec, max.)	540/400
Max. Power Consumption	0.815W (5V x 163mA )
Max. Channels	2
Thermal Sensor	Y
ATA Security	Y
H/W Write Protect	Y
Pin 7 Power	Y
Pin 8 Power	Y
S.M.A.R.T.	Y
Dimension (WxLxH/mm)	36.7 x 31.2 x 10.7
MTBF	>3 million hours
Shock	1500G@0.5ms
Vibration	20G@7~2000Hz
Storage Temperature	-55°C ~ +95°C
Operation Temperature	Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C

產品料號：

Operation Temp.	16GB	32GB	64GB	128GB
Standard Grade (0°C ~ +70°C)	DSSML16GM413CADC*	DSSML32GM413CADC*	DSSML64GM413CADC*	DSSMLA28M413CADC*
Industrial Grade (-40°C ~ +85°C)	DSSML16GM413WADC*	DSSML32GM413WADC*	DSSML64GM413WADC*	DSSMLA28M413WADC*
