Compliant with SD 6.1/ SD 3.0/ SD 2.0 interface
Support Class 10 with UHS-III
High performance
Power fail Management
LDPC ECC algorithm implement

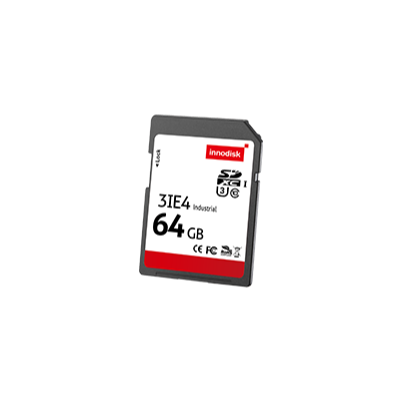

| Module Name | Industrial SD Card 3IE4 |
| Interface | SD 3.0 |
| Flash Type | iSLC |
| Type | Standard |
| Capacity | 8GB~64GB |
| Sequential R/W (MB/sec, max.) | 90/80 |
| Max. Power Consumption | 0.5W |
| Max. Channels | 1 |
| H/W Write Protect | Y |
| Dimension (WxLxH/mm) | 24 x 32.0 x 2.1 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Endurance | 30,000 P/E cycles; 100,000 P/E cycles(112-L) |
| Operation Temp. | 8GB | 16GB | 32GB | 64GB |
|
Standard Grade (0°C ~ +70°C) |
DHSDC-08GS06EE1SL | DHSDC-16GS06%E1SL | DHSDC-32GS06%E1SL | DHSDC-64GS06%E1SL |
|
Industrial Grade (-40°C ~ +85°C) |
DHSDC-08GS06EW1SL | DHSDC-16GS06%W1SL | DHSDC-32GS06%W1SL | DHSDC-64GS06%E1SL |
